Question
How can I test my network connection from my local machine to my server, or from my server to an external resource?
Answer
A tool that can assist in finding network connection issues between 2 endpoints is MTR (My Traceroute). This tool will test the connection speed between the 2 resources as it travels from one to the other, and report any connection latency for each hop taken.
If you do not already have MTR installed, it can be installed using the appropriate method from below:
# yum install mtr
Once installed on the system, the following can be used to run an MTR on a specific port:
# mtr -P $PORT -T $IPADDRESS -c 100 -w
Explaining the flags above:
- -P $PORT: Specify the port to check against. Replace "$PORT" with the port to check.
- -T: Specify TCP packets instead of ICMP Echo packets.
- -n: Do not resolve hostnames from IPs.
- -c 100: Specify the count to use.
- -w: Wide report mode; This prevents trimming of addresses and provides a report after the task completes.
The output should be similar to the following:
CONFIG_TEXT: HOST: serverhost.name Loss% Snt Last Avg Best Wrst StDev
1.|-- 172.16.1.1 0.0% 100 0.5 0.5 0.4 0.7 0.0
2.|-- 10.2.32.1 0.0% 100 2.0 3.0 1.4 7.3 1.9
3.|-- 10.0.2.1 0.0% 100 0.8 0.8 0.7 1.2 0.0
4.|-- 1.2.0.0 0.0% 100 1.5 4.1 1.5 12.0 3.8
5.|-- 1.2.2.0 0.0% 100 1.1 1.2 1.1 1.3 0.0
6.|-- 1.2.2.1 0.0% 100 1946. 1419. 961.5 1946. 464.7
# dnf install mtr
Once installed on the system, the following can be used to run an MTR on a specific port:
# mtr -P $PORT -T $IPADDRESS -c 100 -w
Explaining the flags above:
- -P $PORT: Specify the port to check against. Replace "$PORT" with the port to check.
- -T: Specify TCP packets instead of ICMP Echo packets.
- -n: Do not resolve hostnames from IPs.
- -c 100: Specify the count to use.
- -w: Wide report mode; This prevents trimming of addresses and provides a report after the task completes.
The output should be similar to the following:
CONFIG_TEXT: HOST: serverhost.name Loss% Snt Last Avg Best Wrst StDev
1.|-- 172.16.1.1 0.0% 100 0.5 0.5 0.4 0.7 0.0
2.|-- 10.2.32.1 0.0% 100 2.0 3.0 1.4 7.3 1.9
3.|-- 10.0.2.1 0.0% 100 0.8 0.8 0.7 1.2 0.0
4.|-- 1.2.0.0 0.0% 100 1.5 4.1 1.5 12.0 3.8
5.|-- 1.2.2.0 0.0% 100 1.1 1.2 1.1 1.3 0.0
6.|-- 1.2.2.1 0.0% 100 1946. 1419. 961.5 1946. 464.7
# apt-get install mtr
Once installed on the system, the following can be used to run an MTR on a specific port:
# mtr -P $PORT -T $IPADDRESS -c 100 -w
Explaining the flags above:
- -P $PORT: Specify the port to check against. Replace "$PORT" with the port to check.
- -T: Specify TCP packets instead of ICMP Echo packets.
- -n: Do not resolve hostnames from IPs.
- -c 100: Specify the count to use.
- -w: Wide report mode; This prevents trimming of addresses and provides a report after the task completes.
The output should be similar to the following:
CONFIG_TEXT: HOST: serverhost.name Loss% Snt Last Avg Best Wrst StDev
1.|-- 172.16.1.1 0.0% 100 0.5 0.5 0.4 0.7 0.0
2.|-- 10.2.32.1 0.0% 100 2.0 3.0 1.4 7.3 1.9
3.|-- 10.0.2.1 0.0% 100 0.8 0.8 0.7 1.2 0.0
4.|-- 1.2.0.0 0.0% 100 1.5 4.1 1.5 12.0 3.8
5.|-- 1.2.2.0 0.0% 100 1.1 1.2 1.1 1.3 0.0
6.|-- 1.2.2.1 0.0% 100 1946. 1419. 961.5 1946. 464.7
Please see the following for WinMTR, which provides this tool for Windows: WinMTR
Note: This application is not endorsed, created, or supported by cPanel.
- Open WinMTR from your Downloads folder.
- Extract the WinMTR-v092.zip archive to your desired location.
- Open the WinMTR-v092 folder.
- Open the WinMTR_x64 folder for 64bit operarting system, and WinMTR_x32 for 32bit operating system.
- Open the WinMTR application.
- Enter the host address you want to check.

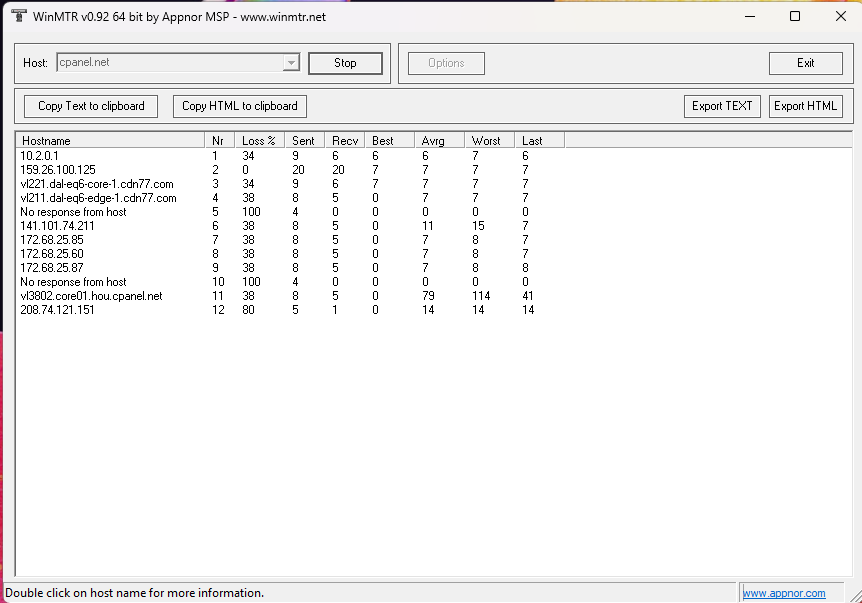

The output may be similar to the following:
You will undoubtedly receive a lot of information from these tests. While the below is not an exhaustive list of possible outcomes, it serves as a brief overview of the most likely behaviors you will encounter.
If you see loss only in the middle of the route, it suggests a problem between your server and your local system. In cases like this, there is very little that can be done by you to resolve the behavior.
If you see loss only near the start of the route, it suggests that your Internet Service provider(ISP) is filtering traffic over that port or that there is some issue in your local network equipment or its configurations causing the behavior. In this case, you would need to contact your ISP for assistance, as their security protocols cannot be modified from within your cPanel server.
If you see similar response times throughout the route and no loss anywhere in the route other than your server or the hop immediately prior to your server, it suggests that your server, or hosting provider, is filtering traffic of the type you are testing. In this case, the first step towards resolving the behavior would be to disable any security appliances or to whitelist all traffic destined for the noted port and then perform the tests again.
If the behavior continues after disabling your security appliances, please open a ticket with us to help you review the behavior further.
